    Auto Attendant Asterisk / Elastix VOIP Product Voice Mailbox CTI Develop Interface

    Ask Lasest Price
    Brand Name : Global Tech
    Model Number : GT5200SV7
    Certification : ISO9001
    Price : To be negotiated
    Payment Terms : L/C,TT, Western Union
    Supply Ability : 10000 pcs per month
    Delivery Time : 2 weeks after payment clear
    • Product Details
    • Company Profile

    Auto Attendant Asterisk / Elastix VOIP Product Voice Mailbox CTI Develop Interface

    Auto Attendant Asterisk / Elastix VOIP Product Voice Mailbox CTI Develop Interface

    Overview

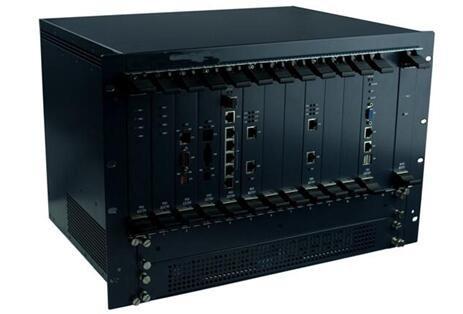

    Global Tech GT5200SV7 is a large-capacity IP PBX which is designed especially for medium-sized and large enterprise, and enterprise group. It provides professional IP telephony services for a maximum of 8,000 SIP users and 1424 analog extensions, 24 E1/T1 ports for digital trunk access and 712 FXO for analog trunks. It adopts high reliable design, including dual main control boards and 1+1 redundancy backup of power supplies. It provides high-quality a maximum 512 channels audio conference and 256 concurrent calls for media resources.


    Features

    ● All-in-one (PBX, IVR, ACD, CDR, Voice mail, Fax, Auto Attendant, CTI)

    ● Very strong networking ability and flexible networking deployment to make your communication any time and anywhere

    ● Provide rich services to make your communication means diversity

    ● Optional and extendable interfaces boards

    ● Support dual main control board for hot standby and 1+1 redundancy backup of power supplies

    ● Number analysis and blacklist/whitelist services for controlling incoming and outgoing calls

    ● Intelligent routing methods reduces enterprises' communication costs

    ● Multi-level rights for management

    ● Web-based management

    ● Standard 19-inch 5U rack high

    ● Carrier-class performance


    Specifications

    Capacity
    Maximum numbers of users8,000 SIP users, 1424 analog extensions
    PortMaximum 24 E1/T1 ports, 712 FXO ports
    Media resourcesMaximum 512 concurrent calls, 512 channels audio conference
    ProtocolSS7, R2, PRI, QSIG, SIP, BRI, H.323, RTMF, NO.1
    CodecG.711A/μ, G.723.1, G.729A
    Fixed interfaces

    1*Fiber optical port, for connecting to Internet

    2*RJ45 WAN port, 1000BASE-T

    3* RJ45 LAN port

    Call featuresCall transfer, call forward, call pickup, call restriction, abbreviated dialing, hot line, Do Not Disturb, wake-up call, caller ID, call waiting, three-party call, blacklist and whitelist, one number reach you, ring group
    Advanced functionalityAuto attendant, voice mailbox, fax to email, audio conference, ACD, IVR, CTI develop interface, CDR
    Physical specifications
    PowerInput 110~240 AC, support 1+1 redundancy backup power supply
    Maximum consumption180W
    Dimension5U rack-mounted, 483mm x 311mm x 343mm
    Weight20kg
    Operating temperature0℃~45℃
    Relative humidity20%-90%, no condensing

    Interfaces View


    Slot#BoardDescription
    0, 1PSU48V DC power, dual power available for standby, 1 board at least
    2, 3DCUControl analog circuit
    4RXUNetwork interface board
    5, 6MCUMain control board, dual MCU available for hot standby
    7, 8, 9, 10EMU/E1/T1

    Equipped as requirements, Below boards are available.

    ①32 VoIP channels board

    ②64 VoIP channels board

    ③128 VoIP channels board

    ④4*E1/T1 board

    ⑤8*E1/T1 board

    11, 12ISUServer, provide value-added services
    13FXS/FXO

    Equipped as requirements, Below boards are available.

    ①16*FXS board

    ②8*FXO board

    ③8*FXO+8*FXS board

    ④Extension board


    *Please clarify before you order.

    ●Single Power or redundant power

    ●Single MCU or dual MCU

    ●Selected Board: slot 7,8,9,10,13

    *Below boards can be ordered independently.

    PNItem
    10102214PSU board, provide 48V DC Power
    10102201DCU board
    10102204RXU board
    10102200MCU board
    1010220532 VoIP channels board
    1010220664 VoIP channels board
    10102207128 VoIP channels board
    101022084*E1/T1 board
    101022228*E1/T1 board
    10102202ISU board
    1010220916*FXS board
    101022108*FXO board
    101022118*FXO+8*FXS board
    10102203Extension board

    Typical Application Diagram

    The GT5200SV7 is usually deployed at enterprise headquarters to connect to PSTN and various terminals. And the branch usually uses GT5200SV2 or GT-IADs.
