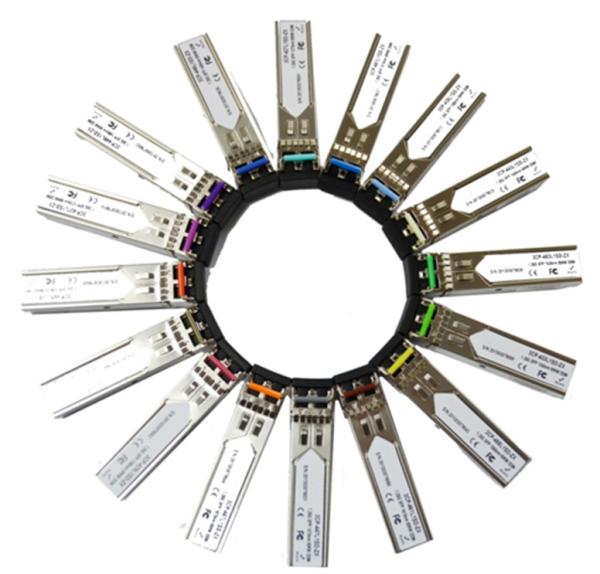

100M / 1000M / 10G Fiber Optical Transceiver SFP / SFP+ / XFP Fiber Optical Network

SFP/SFP+/XFP Fiber Optical Network Series 100M/1000M/10G Fiber Optical Transceiver

Product Overview

155M/1.25G/10G SFP/SFP+/XFP Fiber Optical Transceiver is a high performance, cost effective modulse for serial optical data communications applications specified for signal rates of 155M to 9.95 Gb/s. It is fully compliant to XFP MSA Rev 4.5. are designed for single mode fiber and Multimode fiber and operates at a nominal wavelength of 850/1310/1550 nm, XFP SR, SFP LR, XFP ER, XFP ZR and XFP EZR. The transmitter section adopted 850nm a vertical cavity surface emitting (VCSEL) laser or uncooled directly modulated 1310 nm distributed feedback laser (DFB) or EML colled laser 1550nm. The receiver section uses PIN photodetector for low dark current and excellent responsivity or APD high sensetivity receiver.

Features

•10G XFP Supports 9.95Gb/s to 11.3Gb/s bit rates
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
• Hot-pluggable XFP footprint
• Maximum link length of 120km
• DFB or Temperature-stabilized EML Transmitter
• XFI Loopback Mode
• Duplex LC connector
• Low Power dissipation
• Superior Thermal and EMI integrity performance to support high port densities
• LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
• Built-in digital diagnostic functions, DDMI
• Temperature range -5°C to 70°C or Indutrial Temperature range on request

Technical Parameters

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Main product form list

NO.	product name	Single and double fiber	unit	key parameter
1	100M SFP optical module	Single fiber	piece	Rate 155M with DDM, 20km
2	100M SFP optical module	Single fiber	piece	Rate 155M with DDM, 40km
3	100M SFP optical module	Single fiber	piece	Rate 155M with DDM, 60km
4	100M SFP optical module	Single fiber	piece	Rate 155M with DDM, 80km
5	100M SFP optical module	double fiber	piece	Rate 155M with DDM, 20km
6	100M SFP optical module	double fiber	piece	Rate 155M with DDM, 40km
7	100M SFP optical module	double fiber	piece	Rate 155M with DDM, 60km
8	100M SFP optical module	double fiber	piece	Rate 155M with DDM, 80km
9	1000M SFP Electricity module	RJ45 Electricity module	piece	Electric port module, RJ45 interface, compatible with 100Mb service
10	1000M SFP optical module	Single fiber	piece	Rate 1.25G with DDM, 20km,Support CWDM and DWDM
11	1000M SFP optical module	Single fiber	piece	Rate 1.25G with DDM, 40km,Support CWDM and DWDM
12	1000M SFP optical module	Single fiber	piece	Rate 1.25G with DDM, 60km,Support CWDM and DWDM
13	1000M SFP optical module	Single fiber	piece	Rate 1.25G with DDM, 80km,Support CWDM and DWDM
14	1000M SFP optical module	double fiber	piece	Rate 1.25G with DDM, 20km,Support CWDM and DWDM
15	1000M SFP optical module	double fiber	piece	Rate 1.25G with DDM, 40km,Support CWDM and DWDM
16	1000M SFP optical module	double fiber	piece	Rate 1.25G with DDM, 60km,Support CWDM and DWDM
17	1000M SFP optical module	double fiber	piece	Rate 1.25G with DDM, 80km,Support CWDM and DWDM
18	1000M SFP optical module	Single fiber	piece	Rate 10G with DDM, 10km,Support CWDM and DWDM
19	1000M SFP optical module	Single fiber	piece	Rate 10G with DDM, 20km,Support CWDM and DWDM
20	10G SFP+ optical module	Single fiber	piece	Rate 10G with DDM, 40km,Support CWDM and DWDM
21	10G SFP+ optical module	Single fiber	piece	Rate 10G with DDM, 60km,Support CWDM and DWDM
22	10G SFP+ optical module	double fiber	piece	Rate 10G with DDM, 10km,Support CWDM and DWDM
23	10G SFP+ optical module	double fiber	piece	Rate 10G with DDM, 20km,Support CWDM and DWDM
24	10G SFP+ optical module	double fiber	piece	Rate 10G with DDM, 40km,Support CWDM and DWDM
25	10G SFP+ optical module	double fiber	piece	Rate 10G with DDM, 60km,Support CWDM and DWDM
26	10G SFP+ optical module	double fiber	piece	Rate 10G with DDM, 80km,Support CWDM and DWDM
